Poultry Animal Feed Production Line 415V Chicken Food Pellet Plant

Poultry Animal Feed Chicken Food Pellet Plant Feed Production Line For Sale

Feature:

1. Advanced technology

With reasonable technology, easy operation and low energy consumption. It can produce 5000-15000 tons mash and pellet feed per shift annually;

2. Modular Structure

The plant is compact, occupies less floor space and has low requirement on the mill tower, and needs low investment in civil works. The containerized modular structure is convenient for assembly and disassemble, facilitates the shipment and installation;

3. Automatic and Centralized control

The analogue panel is adopted. All machines can be interlocked and safety alarm device is available. The operation is simple and convenient;

4. Wide applicable scope

The plant can produce both poultry&livestock&fish feed. It is suitable for medium and small sized feed mills and breeding farms.

Parameter:

Feed production line process:

Raw material receiving and pre-cleaning---crushing---mixing---pelleting---cooling--(Crumbling)--sieving---packing(automatic or manual packing)
Cleaning process
To clean the material in order to ensure the quality of the products and the regular working of all equipment.
Crushing process
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
Mixing process
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin, to ensure the continuous operation.
Pelletizing process
The task of this section is to pelletize the powder feed to required sizes.
Cooling Process
After the pelletizing process,the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%.A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%,thereby making the pellets easier to store.
Sieving Process
It is for screening and classifying of mash or pellet feed.
Packing Process
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag, 800-1000kg per bag.

Animal Feed Chicken Food Pellet Plant

415V Poultry Feed Pellet Plant

Poultry Animal Feed Food Pellet Plant

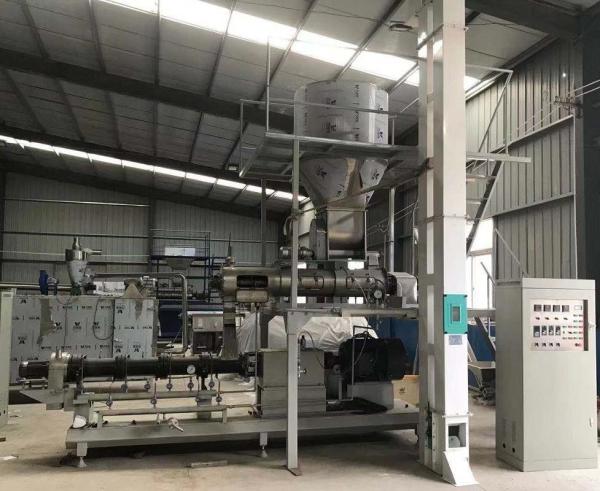

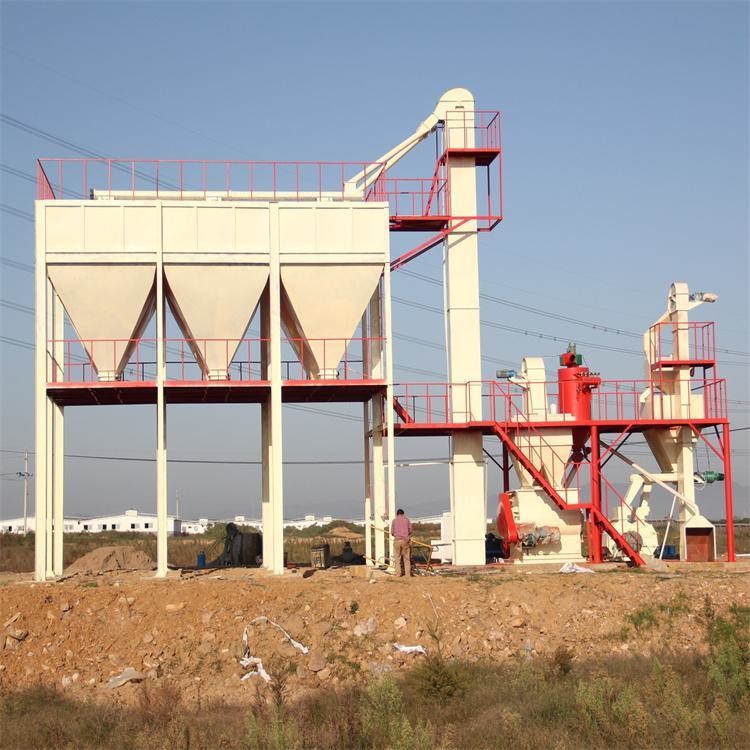

Poultry Animal Feed Production Line 415V Chicken Food Pellet Plant Images
